Thermal conductive silicone grease
Thermal conductive silicone grease

1. Good thixotropy, easy to use, economical and practical, simple coating or sealing process; 2. Better thermal conductivity, lower evaporation loss and oil separation, and no flow at high temperatures; 3. Excellent insulation performance, non-toxic, no

Introduction

GaoDao Technology 2.0W/m.k thermal conductive silicone grease is a thermal conductive organic silicone grease composite made mainly from organic silicone, with the addition of materials with excellent heat resistance and thermal conductivity. It has good thermal conductivity, temperature resistance, and insulation properties, making it an ideal dielectric material for heat-resistant devices. Its performance is stable, and it will not produce corrosive gases or affect the metals it comes into contact with during use. High purity fillers and organic silicon ensure smooth, uniform, and high-temperature insulation of the product. Apply to the assembly surfaces of power devices and heat sinks to help eliminate air gaps between contact surfaces, increase heat flux, reduce thermal resistance, lower the operating temperature of power devices, improve reliability, and extend service life

Features

high reliability

high reliability

High thermal conductivity

High thermal conductivity

high compressibility, soft and elastic

high compressibility, soft and elastic

Natural viscosity, double-sided self-adhesive

Natural viscosity, double-sided self-adhesive

Compliant with ROHS and UL environmental requirements

Compliant with ROHS and UL environmental requirements

Application Way

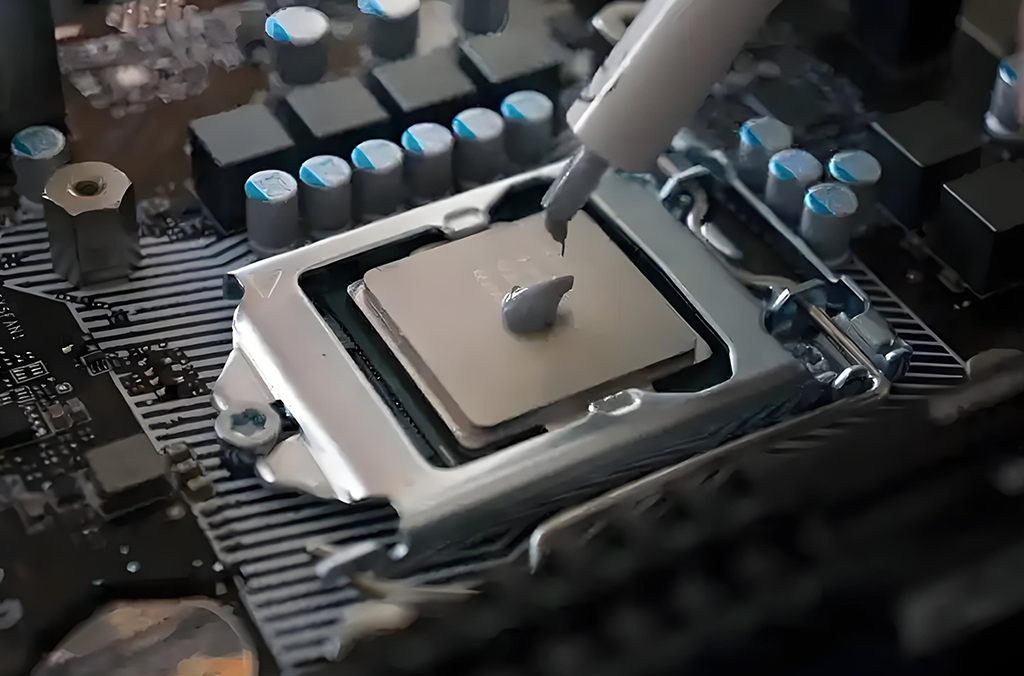

1. Used for heat conduction and dissipation of electronic components such as power amplifiers, transistors, electronic tubes, CPUs, etc; 2. Installation of bases and bolts for transistors, diodes, and silicon controlled rectifiers; 3. Used to form a med

Application Areas

Product Data

Project

Unit

Environment

Test Method

Test Results

color

-

25℃

Visual

white

Thermal impedance

℃-in2/W

25℃

ASTM D1470

<0.1927

proportion

-

25℃

ASTMD1475

>2.1

Evaporation

%

150℃/24Hours

Fed.Std.791

<0.001

Oil separation

%

150℃/24Hours

Fed.Std.791

<0.05

Insulation Constant

-

100Hz

ASTM D150

>5

Viscosity

-

25℃

-

No flow

Cone penetration

1/10 mm

25℃

GB/T-269

410±10

Instant temperature resistance

-

-

-50~340℃

Operating temperature range

-

-

-20~200℃

Thermal conductivity

W/m.k

-

ASTM D5470

>  2.0
