TP200 New Energy Battery Thermal Conductive Silicone Sheet - Silicone Thermal Conductive Sheet
TP200 New Energy Battery Thermal Conductive Silicone Sheet - Silicone Thermal Conductive Sheet

Thermal conductivity: 2W/m. k, double-sided self-adhesive high electrical insulation, good temperature resistance, easy to assemble and reusable

Introduction

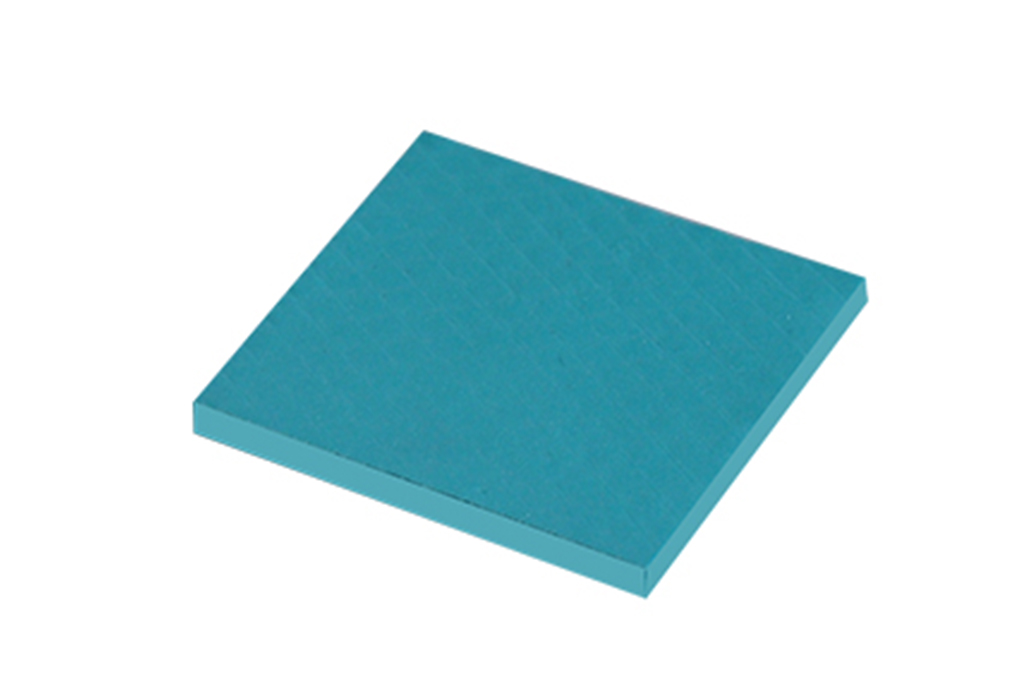

TP200 is a thermal conductive silicone gasket made of silicone and thermal conductive ceramic filler through special processing technology. It is double-sided self-adhesive, high electrical insulation, and has good thermal conductivity under low voltage shrinkage. The thermal conductive silicone sheet has a thickness of 1.0-12mm and a thermal conductivity coefficient of 2.0W/m.K. It can work stably at -40 ℃~150 ℃ and meets the UL94V0 flame retardant rating. It can be molded into specified shapes and has high electrical insulation. It is directly sold from the manufacturer

Features

high reliability

high reliability

High thermal conductivity

High thermal conductivity

high compressibility, soft and elastic

high compressibility, soft and elastic

Natural viscosity, double-sided self-adhesive

Natural viscosity, double-sided self-adhesive

Compliant with ROHS and UL environmental requirements

Compliant with ROHS and UL environmental requirements

Application Way

Calculator cooling module, cooling device to chassis or frame, network communication equipment, power module High speed large storage drive, power conversion equipment, automotive engine control unit Flat panel display, LED lighting equipment, PDP displ

Application Areas

communication device

communication device

computer

computer

Product Data

AttributesTypical valuesTesting Standards
BrandGaodao Technology-
ModelTP200-
ComponentsOrganic silicon+ceramic-
ColorGrey/Grey White/BlueVisual inspection
Thickness (mm)0.5~20mmASTM D374
Density (g/cc)2.82ASTM D792
Hardness (shore C)25ASTM D2240
Long term use temperature (℃)-40~150-
Fire resistance performanceV-0UL94
Electrical Performance
Breakdown voltage (kv/mm)≥6.0ASTM D149
Dielectric constant (@ 1mHz)7.0ASTM D150
Volume resistivity (Ω. cm)1013ASTM D257
Thermal conductivity
Thermal conductivity (W/m.K)2.0WASTMD5470
