thermal conductivity: 5.0 W/m.K； Highly compatible; Natural viscosity, easy to use; Good temperature resistance performance

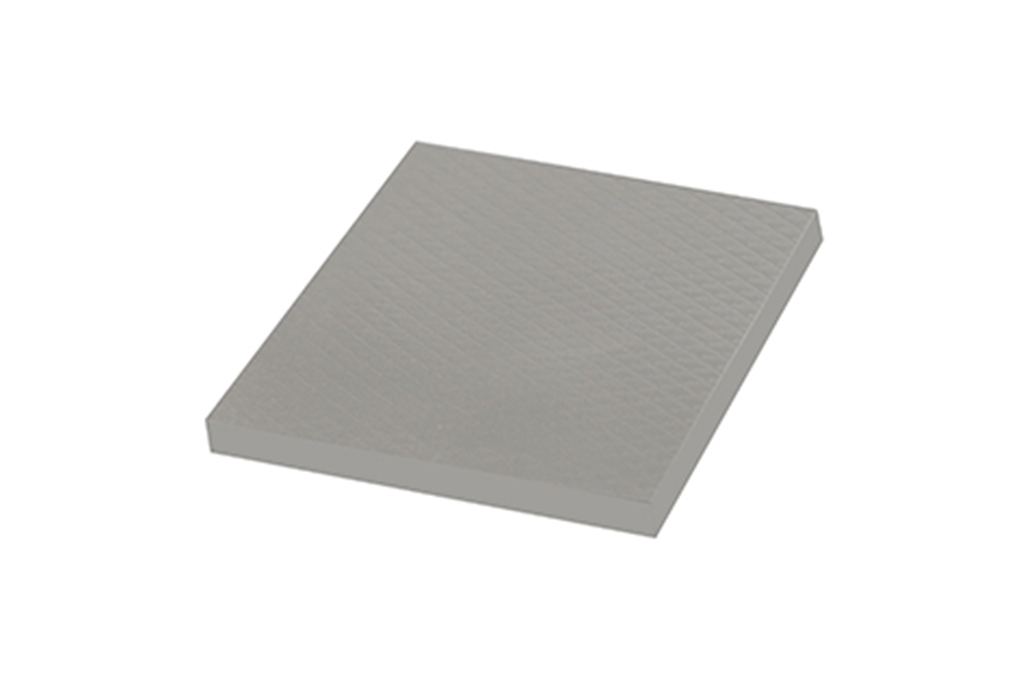

TP500 is a material with high thermal conductivity, double-sided self-adhesive. When assembled with electronic components, it exhibits low thermal resistance and good electrical insulation properties under low compression force. It can work stably at -40 ℃~200 ℃ and meet the flame retardant rating requirements of UL94V0
high reliability
High thermal conductivity
high compressibility, soft and elastic
Natural viscosity, double-sided self-adhesive
Compliant with ROHS and UL environmental requirements
communication device
computer
| property | Typical Value | Test Standards |
| brand | High-tech | - |
| model | TP500 | - |
| Components | Silicone + ceramic | - |
| color | Gray/customized | Visual |
| Thickness (mm) | 1.0~6.0mm | ASTM D374 |
| Density (g/cc) | 3.2 | ASTM D792 |
| Hardness (Shore C) | 50 | ASTM D2240 |
| Elongation% | - | - |
| Long-term use temperature (℃) | -40~200 | - |
| Fire performance | V-0 | UL94 |
| Electrical properties | ||
| Breakdown voltage (kV/mm) | ≥6.0 | ASTM D149 |
| Dielectric constant (@1MHz) | 7.4 | ASTM D150 |
| Volume resistivity (Ω.cm) | 1010 | ASTM D257 |
| Thermal conductivity | ||
| Thermal conductivity (W/mK) | 5.0W | ASTMD5470 |
