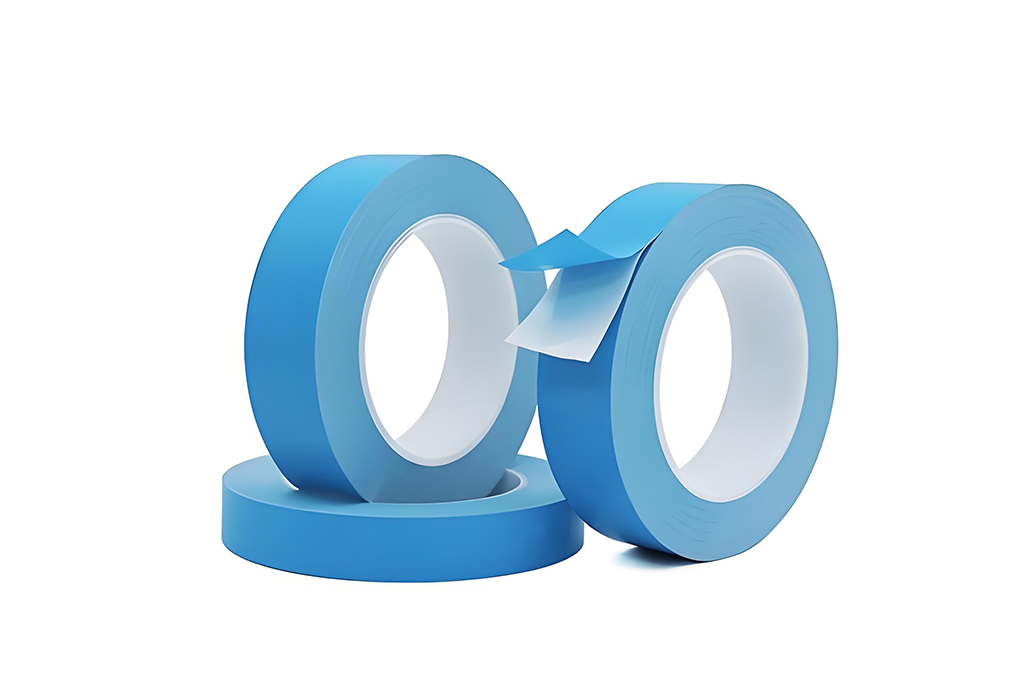

Fiberglass Thermal Conductive Double sided Adhesive
Fiberglass Thermal Conductive Double sided Adhesive

Thickness: 0.4mm Back material: Acrylic Substrate: Glass fiber cloth Temperature resistance range:- 20-120℃ Thermal conductivity: 0.3W/m.k

Introduction

Double sided thermal conductive adhesive is made by filling high-performance acrylic pressure-sensitive adhesive with high thermal conductivity ceramic particles and coating them on both sides of glass fiber cloth or without substrate& lt;/p>& lt;p> Double sided thermal conductive adhesive has high thermal conductivity, strong adhesion, and stability. Its lifespan is longer than that of general heat dissipation double-sided stickers, and it can work for a minimum of 5 years at room temperature (80-120 degrees)

Features

high reliability

high reliability

High thermal conductivity

High thermal conductivity

high compressibility, soft and elastic

high compressibility, soft and elastic

Natural viscosity, double-sided self-adhesive

Natural viscosity, double-sided self-adhesive

Compliant with ROHS and UL environmental requirements

Compliant with ROHS and UL environmental requirements

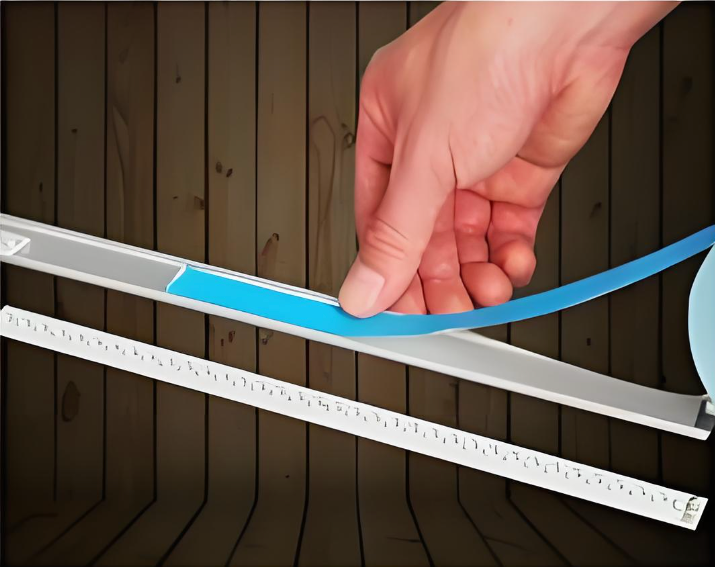

Application Way

LED lighting fixtures, electronic appliances, electronic scales, computers and accessories, digital cameras, printer accessories, printer consumables, fax machines

Application Areas

Product Data

Test itemsUnitTest ResultsTest Method
Substrate Type-Glass Fiber-
color-WhiteVisual inspection
thicknessmm0.5mm-
180° peel force(PSTC-101)(N/25mm)19PSTC-1
Retention(1 kg/inch/25°C)48PSTC-1
Adhesionkg/inch1.5PSTC-1
Initial adhesionkg/inch1.5PSTC-1
Withstand voltageKv/mm7ASTMD149
Long-term heat resistance°C80EN344
Short-term heat resistance°C120EN344
Operating temperature°C-20°C +120°CEN344
Thermal conductivityW/mk≥0.3ASTMD5470
